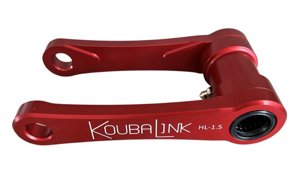

1.5" Lowering Link - Lowers Rear Suspension 1.5 Inches - For 03-07 Husqvarna Offroad 4T Replaces # 8000 A 4428

Retail Price: $179.00
You save: $10.05  (6%)
Our Price: $168.95

Add to Cart:


Please select a vehicle to verify part fitment

Details

  • Model: HL-1.5
  • Shipping Weight: 1.8lbs
  • 2 Units in Stock
  • Manufactured by: KoubaLink

Description

For 03-07 Husqvarna Offroad 4T Replaces # 8000 A 4428

  • Color: Red
  • Features: No Drilling Required,Greasable
  • Finish: Anodized
  • Lift/Drop Height Range: Drop 1.5 Inches
  • Machine Type: Dual Sport Motorcycle,Off-road Motorcycle
  • Material: Aluminum
  • Placement on Vehicle: Rear
  • Type: Lowered Shock Linkage
  • Universal Fitment: No
Lowering amounts indicate REAR lowering, NOT overall bike height lowering. When installing rear lowering links, the front can be adjusted by moving the forks upwards in the triple clamps. This will lower the bike more over-all and will speed up the steering. Leaving the front forks in stock location will increase stability at speed but have a slower steering feel. Please note: Lowering the front and/or rear of your motorcycle will change the geometry and may affect the handling, use caution after making changes/adjustments.


KoubaLink specializes in motorcycle lowering and performance linkages for off-road and dual-sport rear suspension systems. Compromise is not an option at KoubaLink. We listen to riders from all over the world explain where and how they use their off-road and dual-sport bikes. With their input, we manufacture products that add to your motorcycling experience and make it a little more enjoyable.
The picture shows the spring to swingarm clearance with the stock links on some of the Husky models, if your bike has only the clearance shown below with the swingarm fully extended then the spring and/or swingarm tunnel will have to be filed. When using the HL1.5 link, approx 1/8 inch more clearance is required. When using the HL2 link, 1/4 inch more clearance is required. *Sometimes the shock spring and spring retainer can be rotated a few degress to get maximum clearance. If your bike has 1/2 inch plus more clearance than shown, then filing the swingarm or spring should not be required.


This part fits the following

TypeMakeModelYearEngineLocationRequiredNotes
MotorcycleHusqvarnaSM400R20054001
MotorcycleHusqvarnaSM450R20054501
MotorcycleHusqvarnaSM450R20064501
MotorcycleHusqvarnaSM450R20074501WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSM510R20055011
MotorcycleHusqvarnaSM510R20065101
MotorcycleHusqvarnaSM510R20075101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSM61020066101
MotorcycleHusqvarnaSM61020076101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSM61020086101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSM610 IE20075761WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSM610 IE20085761WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSM610S IE20066101
MotorcycleHusqvarnaSM610S IE20076101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSM610S IE20086101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaSMS63020116301WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTC25020052501
MotorcycleHusqvarnaTC25020062501
MotorcycleHusqvarnaTC25020072501WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTC45020054501
MotorcycleHusqvarnaTC45020064501
MotorcycleHusqvarnaTC45020074501WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTC51020055101
MotorcycleHusqvarnaTC51020065101
MotorcycleHusqvarnaTC51020075101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTE25020052501
MotorcycleHusqvarnaTE25020062501
MotorcycleHusqvarnaTE25020072501WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTE45020054501
MotorcycleHusqvarnaTE45020064501
MotorcycleHusqvarnaTE45020074501WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTE51020055101
MotorcycleHusqvarnaTE51020065101
MotorcycleHusqvarnaTE51020075101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTE61020066101
MotorcycleHusqvarnaTE61020086101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTE610 IE20066101
MotorcycleHusqvarnaTE610 IE20086101WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
MotorcycleHusqvarnaTE63020116001WILL NOT fit 2008 and newer Husqvarnas EXCEPT for the SM/TE 610/630.
